| AF Model No. |
Description |
IC model no. |
Resolution |
LCD power supply(VCC) |
Input Signal |
Support Panel I/F |
Audio |
Other function support |
Size |
Photos |

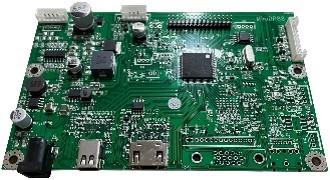

| AFBAIT13083ML12V-1 |
AD board |
TSUMP88CMT9-1 QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
MiniDP/HDMI |
LVDS |
2WX2 |
|
130mm (L)*83mm (W)*12.6mm (H) |
|

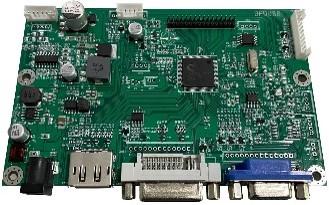

| AFBAIT13083DL12V-1 |
AD board |
TSUMP88CMT9-1 QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
DP/DVI/VGA |
LVDS |
2WX2 |
|
130mm (L)*83mm (W)*12.6mm (H) |
|

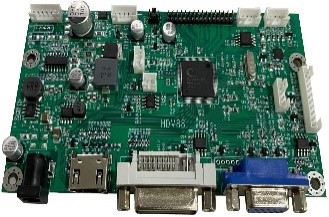

| AFBAIT13083HL12V-2 |
AD board |
TSUMP88CMT9-1 QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
HDMI/VGA/DVI |
LVDS |
2WX2 |
|
130mm (L)*83mm (W)*12.6mm (H) |
|

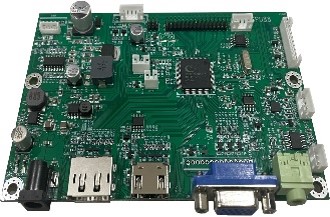

| AFBAIT13083HL12V-1 |
AD board |
TSUMP88CMT9-1 QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
HDMI/VGA/DP |
LVDS |
2WX2 |
|
130mm (L)*83mm (W)*12.6mm (H) |
|

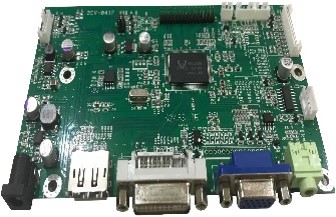

| AFBAIT145083VLI12V-1 |
AD board |
RTD2486AD-CG QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
VGA/DVI/DP |
LVDS |
2WX2 |
I2C |
145mm (L) *83 mm (W)* 14.2mm(H) |
|

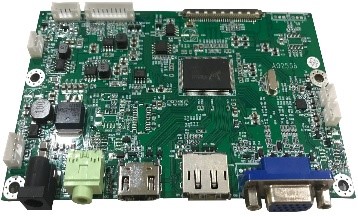

| AFBAIT13083VLI12V-1 |
AD board |
RTD2486AD-CG QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
VGA/DP/HDMI |
LVDS |
2WX2 |
I2C |
130mm (L)*83mm (W)*12 mm (H) |
|

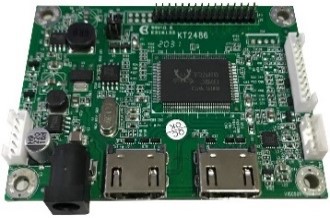

| AFBAIT8260HLI12V-1 |
AD board |
RTD2486AD-CG QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
HDMI*2 |
LVDS |
2WX2 |
I2C |
82mm (L)*60mm (W)*12.50mm (H) |
|

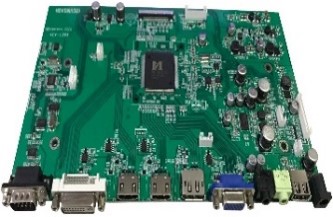

| AFBAIT240140DVR12V-1 |
AD board |
MST9U13 |
4K2K @60Hz |
3.3V/5V/10V/12V |
DVI/HDMI*2/DP/VGA |
VX1/eDP |
10WX2 |
RS232 |
240mm (L)*140.5mm (W)*14mm (H) |
|
| AFBAIT13061HER12V-1 |
AD board |
RTD2556T-CG |
240*320 |
3.3V/5V/12V |
HDMI/DP/VGA |
eDP |
2WX2 |
RS232(option) |
130mm (L)*61mm (W)*14mm (H) |
|
| AFBAIT6565HL12V-1 |
AD board |
TSUMU88CMT9-1 QFP128PIN |
1920x1080 @60Hz |
3.3V/5V/12V |
HDMI |
LVDS |
2WX2 |
|
65mm (L)*65mm (W)* 12mm (H) |
|
